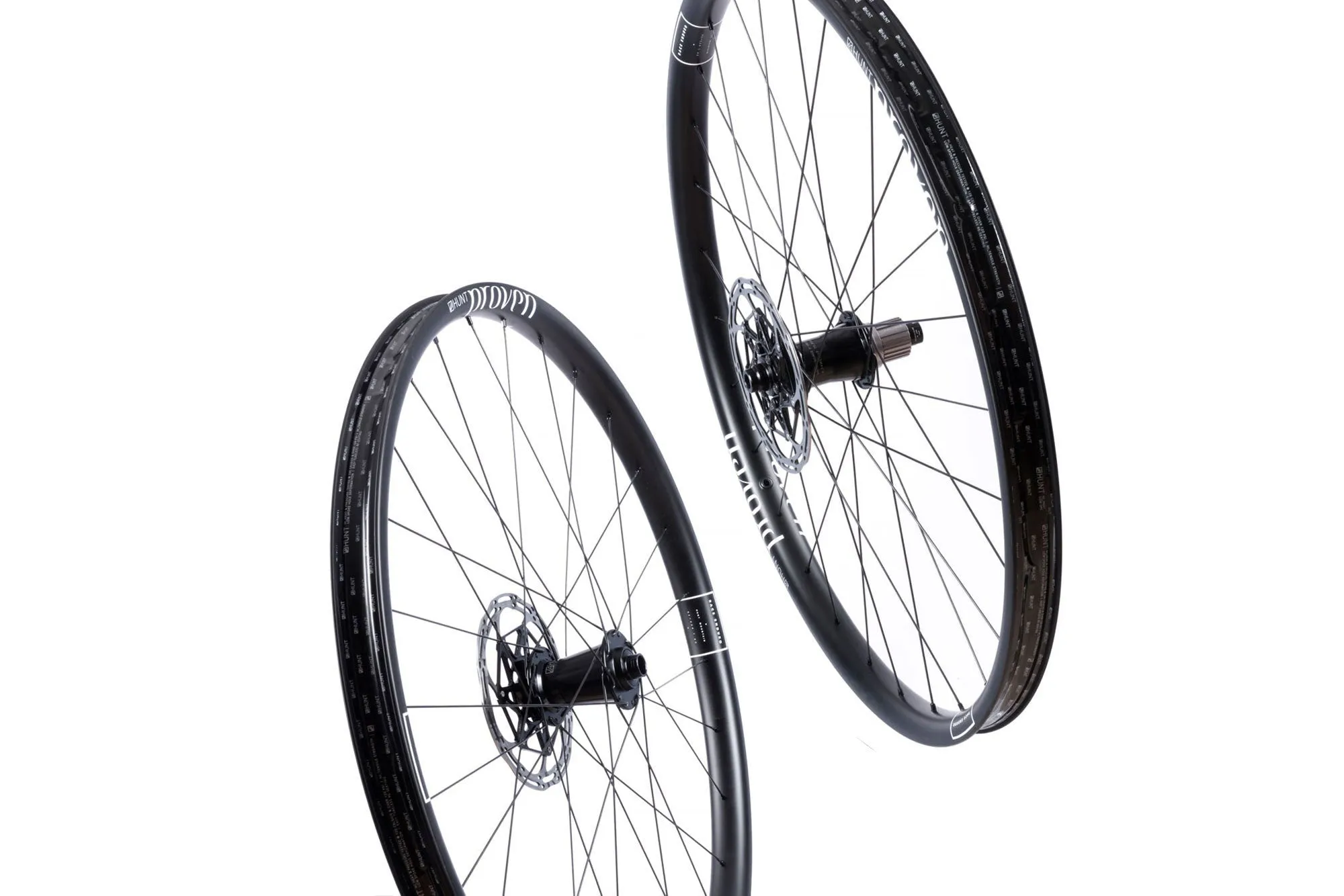

Purpose-built front and rear carbon fibre rims with incredible impact resistance and outstanding trail damping properties.
29" | 30 Wide Int | 1929g
The Purpose
Tailored to maximise traction and accuracy on the unrelenting stages of the Enduro World Series. Tuned for front wheel comfort and precision and rear wheel strength and durability. Developed in the UK and Proven around the globe during the 2022 EWS season under Chloe Taylor and Fergus Ryan.
Proprietary front and rear carbon layup and weave, with specific front and rear spoke gauges for a fully tuned carbon wheel system. What sets Race Enduro apart is the tailored front and rear rim carbon layups, each aimed to offer specific ride properties. The front is tuned for comfort, while the rear can withstand impacts and compressions. All this while providing precise control and reducing fatigue during those long EWS stages.
Proven Carbon Race Enduro Competitor Impact Testing
The HUNT Engineering team uses our custom impact rig to test Proven Race Enduro alongside leading competitors and our own wheelsets. The graph below shows the impact energy (J) recorded at the first sign of failure. Our new Proven Race Enduro exhibits an impact strength 12J greater than that of the HUNT All-Mountain Carbon H_Impact wheelset.
The Purpose
Tailored to maximise traction and accuracy on the unrelenting stages of the Enduro World Series. Tuned for front wheel comfort and precision and rear wheel strength and durability. Developed in the UK and Proven around the globe during the 2022 EWS season under Chloe Taylor and Fergus Ryan.
Proprietary front and rear carbon layup and weave, with specific front and rear spoke gauges for a fully tuned carbon wheel system. What sets Race Enduro apart is the tailored front and rear rim carbon layups, each aimed to offer specific ride properties. The front is tuned for comfort, while the rear can withstand impacts and compressions. All this while providing precise control and reducing fatigue during those long EWS stages.
Proven Carbon Race Enduro Competitor Impact Testing
The HUNT Engineering team uses our custom impact rig to test Proven Race Enduro alongside leading competitors and our own wheelsets. The graph below shows the impact energy (J) recorded at the first sign of failure. Our new Proven Race Enduro exhibits an impact strength 12J greater than that of the HUNT All-Mountain Carbon H_Impact wheelset.
Key Features
Our no compromise enduro wheel system.

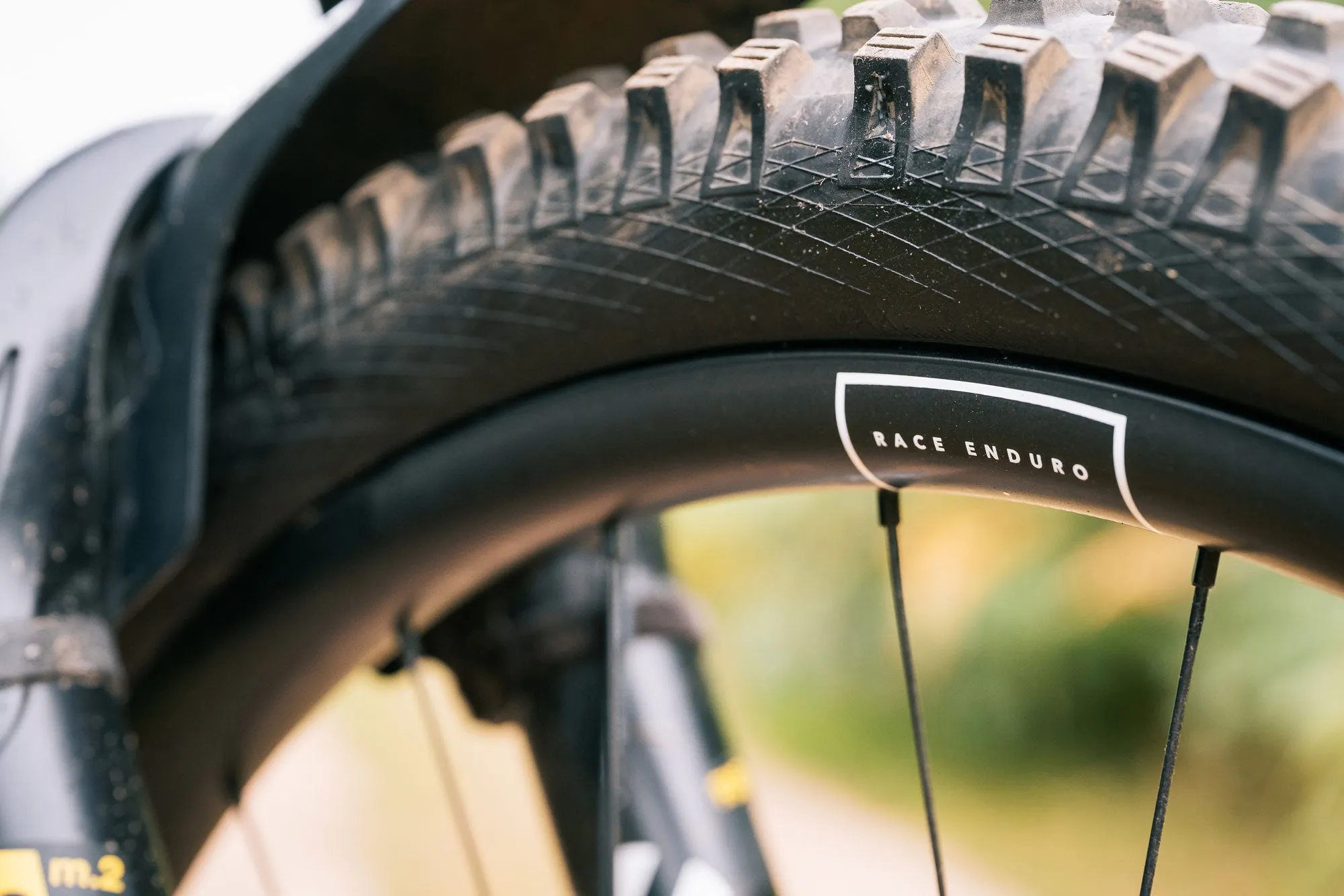

- Rims | Built to offer the same levels of impact resistance as our legendary All Mountain Carbon H_IMPACT wheelset but with the benefits of added traction and compliance. Updated 30mm internal rim profiles make the most of modern Enduro tyres, while a 23mm deep design increases strength.
- Hubs | Large body Hunt Enduro front hub and 5 degree RapidEngage rear hub, boost (110/148 )or Super-Boost (110/157) spacing. Large double sealed cartridge bearings. Rock Shox Torque Caps for Boost hubs are available.
- Axles | Extra thick 17mm 7075-T6 axles for increased strength and stiffness. Reducing flex in the hub also helps to increase bearing life
- Tyres | Optimised for 2.4"-2.6" tyre widths, but also work very well with 2.25"-2.8".
- Bearings | Super smooth, replaceable, Revo bearings offer fast rolling performance. Dual full-contact seals and long-lasting, heat-resistant grease protect against water ingress for longer service intervals.
- Weight | 1929g

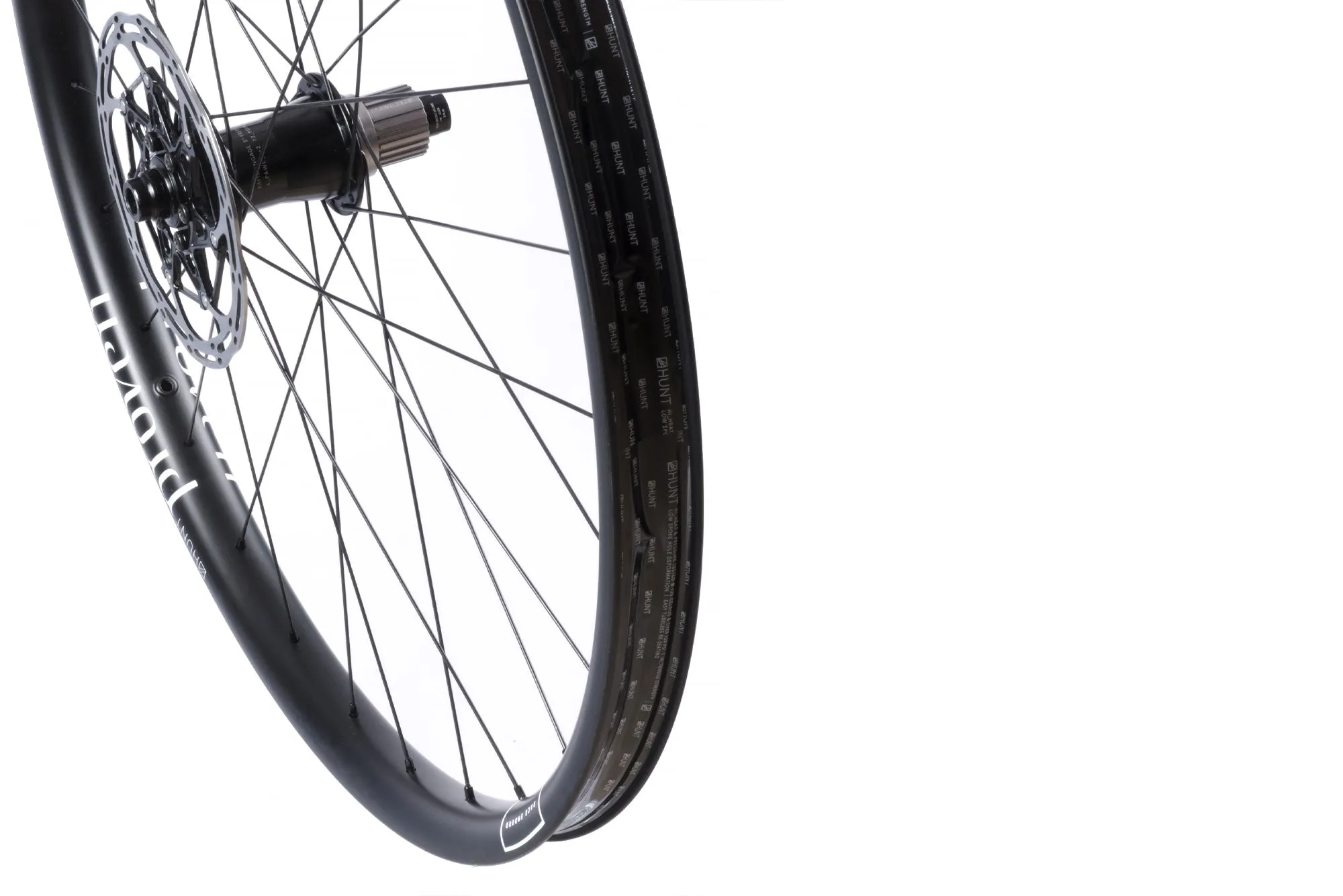

Full Specs
Rims

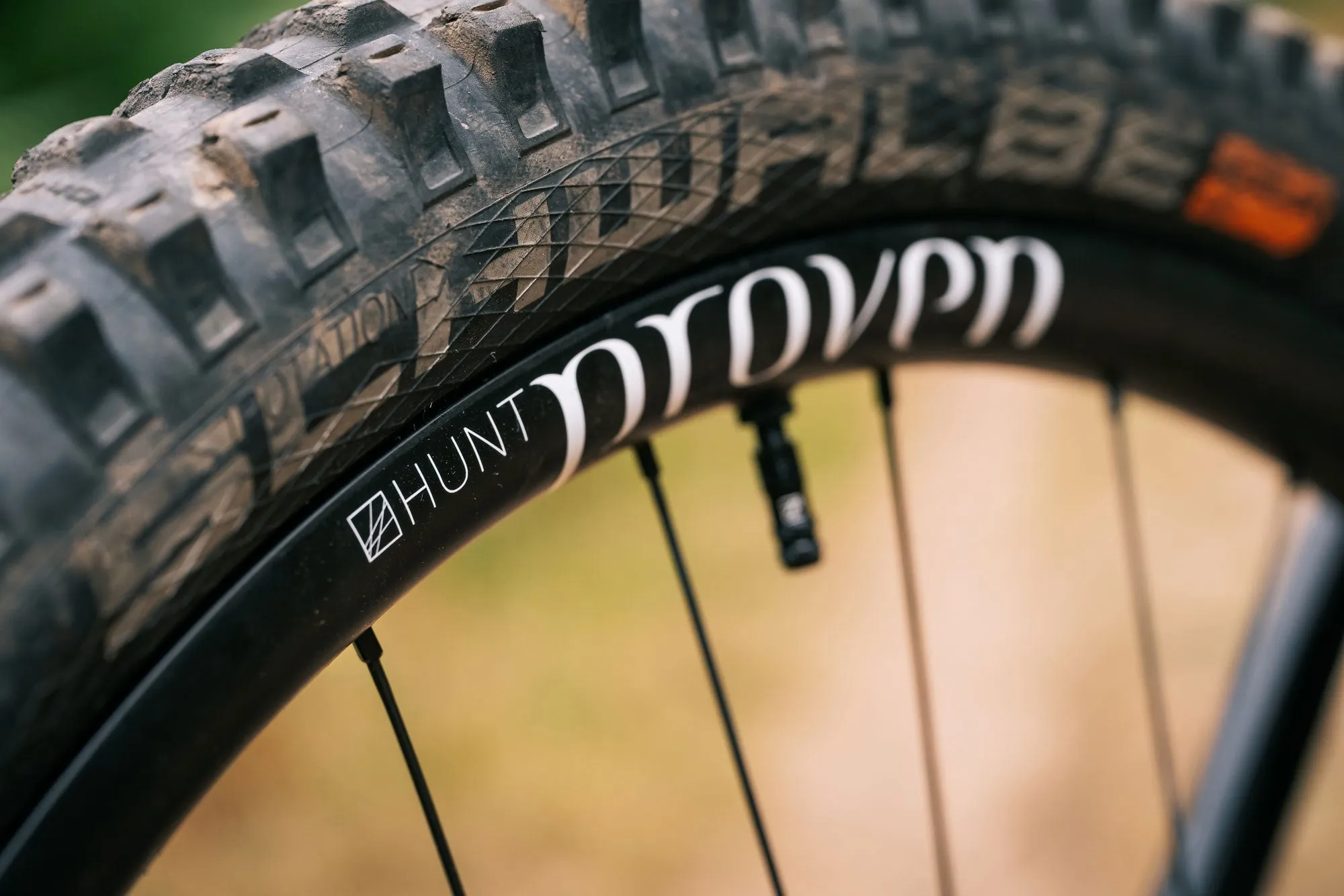

- 30mm internal rim width, 37.2mm external and 23mm depth
- Front and rear-specific carbon construction, built for front-wheel compliance and rear-wheel strength.
- Tubeless-ready – designed to work excellently with tubeless tyres. Tubeless-rim tape and valves included.
- H-lock bead-seat up-kicks for easy and secure tubeless installation.
- Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.
- Available in 29in, 27.5in and Mullet configurations.
Spokes
- J-bend cold drawn.
- 28F/28R spoke count.
- Front Spokes are Pillar PSR TB2016, with a narrower 1.6mm central butted diameter.
- Rear Spokes are Pillar PSR 2018 with a larger 1.8mm central diameter.
- Black stainless treatment.
Nipples
- Hard-anodized alloy strength.
- Lightweight DNS (double square nipple) body for external adjustment and hex head for easy internal adjustment/tensioning.
- Long 16mm thread for durability.
- 14 gauge.
- Black finish
Tyres Info
- Follow tyre manufacturer recommendations as written on the sidewall of the tyre, and do not exceed 40psi on tyres up to 2.5" and 30psi for tyres up to 3.
- Optimised for 2.4"-2.6" tyre widths, but also work very well with 2.25"-2.8".
- Designed to work perfectly with tubeless and non-tubeless tyres.
- Suitable tubeless are available to be fitted to your Hunt Proven Carbon Race Enduro Wheels.
Axle/Hub Size
- Boost - 148x12mm or Super-Boost 157x12mm (Rear) with 110x15mm (Front). Rock Shox Torque Caps available - request in notes at checkout.
- SRAM/Shimano 8/9/10/11 speed, Shimano Microspline and SRAM XD compatible.

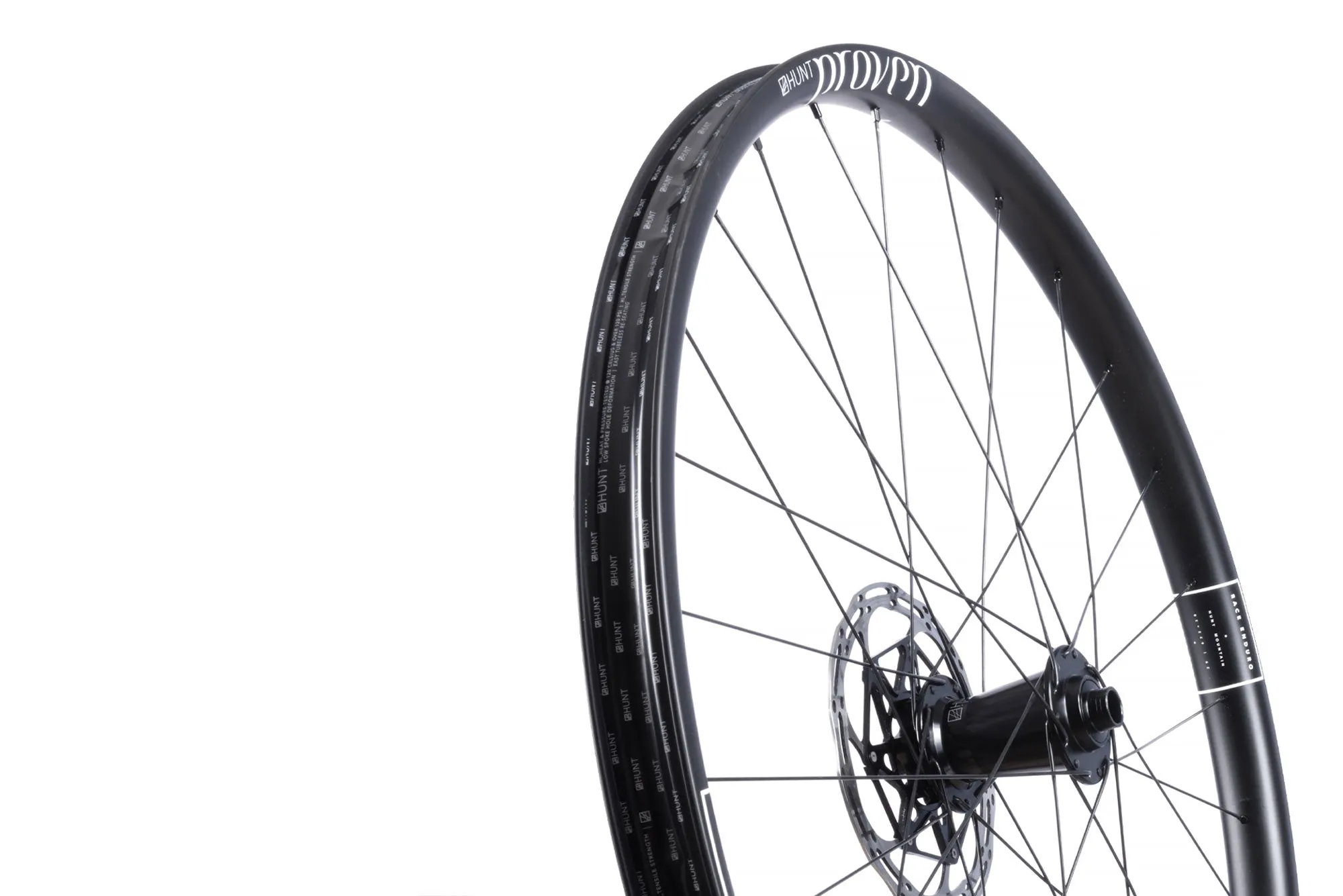

Front Hub
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 110x15mm spacing. Rock Shox Torque Caps for Boost option available - just add a comment in the notes section on the cart page.
- 7075-T6 aluminium alloy axles.
- 6 bolt disc mount.
- Polished anodized black finish with laser graphics.

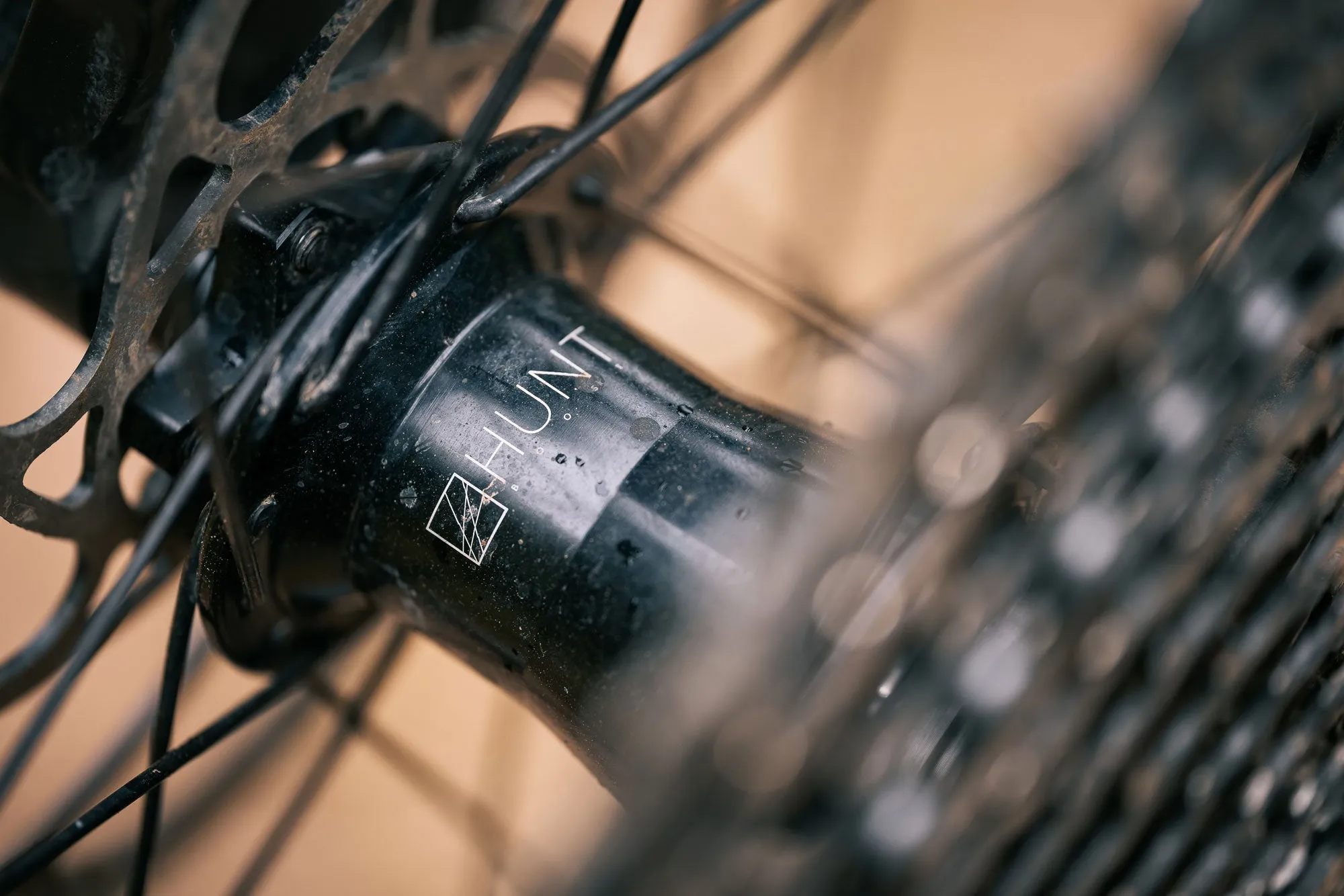

Rear Hub
- Forged and CNC’d 7075-T6 heat treated aluminium alloy Hub body.
- RapidEngage 5 degree, 3x2 freehub for increased resistance to the extra torque generated.
- H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- 148x12mm spacing (boost) or 157x12mm (Super-Boost)
- 6 bolt disc mount
- 9/10/11 speed Shimano/SRAM compatible freehub, Shimano Microspline and SRAM XD Driver version available.
- Polished anodized black finish with laser graphics.
Bearings
- Super smooth precision REVO bearings.
- Dual full-contact seals.
- Cartridge design for convenient servicing.
Warranty, Support and Weight Limits
A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, .
All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, . 120kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 110Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 40psi as this will reduce the fatigue on the wheelset.
We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not.
